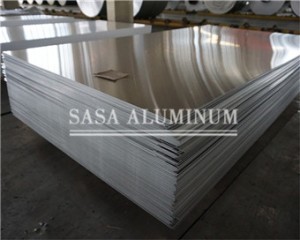

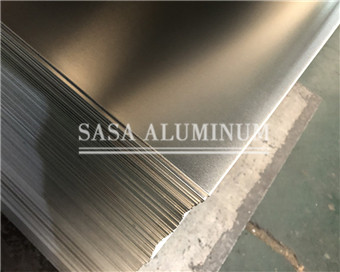

52000 Aluminium Plate
Aluminum 52000 Plate contains nominally 2.5% magnesium & 0.25% chromium. 52000 Aluminum Plate has good workability, medium static strength, high fatigue strength, good weldability, and very good corrosion resistance, especially in marine atmospheres. Aluminum Plate 52000 also has the low density and excellent thermal conductivity common to all aluminium alloys.
Aluminum 52000 Plates have great workability and is readily machinable and weldable. Its high fatigue strength and medium static strength, plus excellent corrosion resistance, make it popular for use in marine atmospheres. Like with other aluminum alloys, this grade of aluminum has excellent thermal conductivity. In order to harden this alloy, cold working should be used, since heat working can’t achieve this. It has excellent endurance limits and fatigue properties.
| Standard Dimensions of 52000 Aluminium Plate: |
| Aluminium Alloy | ASTM B209 52000 |
| Aluminium 52000 Plate Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium 52000 Plate Thickness | 0.5mm-150mm |
| Aluminium 52000 Plate Width | 500-2000mm |
| Aluminium 52000 Plate Length | to clients’ requirement |
| Aluminium 52000 Plate Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| 52000 Aluminium Plate Coating finish | PVDF, POLYESTER(PE) |
| Aluminium 52000 Plate Surface | Polished, hair line, brush, sand blast, checkered, embossed, etching, etc. Mill finish, Bright finish, paper interleaved, one side film, both sides film. |
| Aluminium 52000 Plate Gloss | Meet the customer requirement |
| Total coating thickness of Aluminium 52000 Plate | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Aluminium 52000 Plate Coating hardness | (pencil hardness) more than 2H |
| Aluminium 52000 Plate Coating adhesive | No lower than1st grade |
| Aluminium 52000 Plate Impact resistance | No cracking or peeling (50kg/cm, ASTMD-2794: 1993) |
| Aluminium 52000 Plate Flexibility (T-bend) | 2T |
| Aluminium 52000 Plate MEK resistance | More than 10 |
| Available Aluminium 52000 Plate Stock Sizes | 1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape. |
| Aluminium 52000 Plate Delivery Time | 30-60 days after receiving the prepayment |
| Aluminium 52000 Plate Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium 52000 Plate. One 40GP container can load about 24 tons Aluminium 52000 Plate |
| ASTM B209 Alloy 52000 Plate Outer packing | Export standard, wooden pallet |
| Bottom side Aluminium 52000 Plate is coated with protective polyester material, thickness more than 6 micron | |
| We Export Aluminium 52000 Plate to | Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc. |
| Types of 52000 Aluminium Plate: |
| 52000 Aluminium Plates Product Range | ||||
|---|---|---|---|---|
| Alloy No. | Thickness (mm) |
Width (mm) |
Length (mm) |
Temper |
| 52000 Aluminium Plate | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
| Standard Specification of 52000 Aluminium Plate: |
| China |
U.S.A. |
BRITAIN |
CANADA | GERMANY |
RUSSIA |
I.S.O. |
FRENCH | |
|---|---|---|---|---|---|---|---|---|
| New IS | Old IS | (A.A.) |
(B.S.) |
(DIN) | – | – | – | |
| 52000 | N4 | 5052 | N4 | M57S | Al-Mg.2 | A-Mg | A-Mg-4 | – |
| 52000 Aluminium Plate Sizes: |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| 52000 Aluminium Plate Weight Chart: |
Width: 1.000 mm | Length: 2.000 mm
| Product | Thickness | Weight |
|---|---|---|
| 52000 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 52000 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 52000 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 52000 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 52000 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 52000 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 52000 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 52000 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 52000 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 52000 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 52000 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 52000 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 52000 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 52000 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 52000 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 52000 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 52000 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 52000 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 52000 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 52000 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 52000 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 52000 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 52000 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 52000 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
| 52000 Aluminium Plate Chemical Composition: |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| N 4 | 52000 | 5052 | — | 0.1 | 1.7 | 2.6 | — | 0.6 | 0.5 | — | 0.5 | 0.4 | Cr+Mn=0.5 | ||
Aluminum Alloy Heat Treatment Temper Designations
Basic Aluminum Heat Treatment Designations
- F As Fabricated
- O Annealed
- H Strain Hardened
- W Solution Heat Treated
- T Solution Heat Treated
Heat Treating T Temper Codes for Aluminium 52000 Plates
- T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
- T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
- T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
- T4 – Solution heat treated, and naturally aged to a substantially stable condition.
- T5 – Cooled from an elevated temperature shaping process then artificially aged.
- T6 – Solution heat treated then artificially aged.
- T7 – Solution heat treated then overaged/stabilized.
- T8 – Solution heat treated, cold worked, then artificially aged.
- T9 – Solution heat treated, artificially aged, then cold worked.
- T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.
Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.
H Temper Strain Hardening Codes for Aluminium 52000 Plates
- H1 – Strain hardened only
- H2 – Strain hardened and partially annealed
- H3 – Strain hardened and stabilized
- H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.
Application of 52000 Aluminium Plate
Sasa Aluminium 52000 Aluminium Plate is the most widely used form of Industrial Aluminium. 52000 Aluminium Plates find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.
