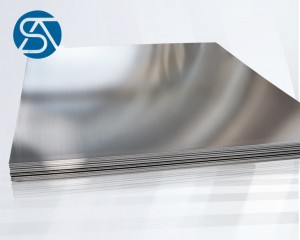

5454 Aluminum Sheet
5454 aluminum sheet is a high-strength, corrosion-resistant alloy ideal for marine and heavy-duty applications. Known for its excellent resistance to seawater, it is commonly used in the construction of ships, offshore structures, and chemical equipment. This alloy offers superior durability and formability, with a tensile strength of 38 ksi (262 MPa) and a yield strength of 26 ksi (179 MPa). It also provides excellent weldability and machinability. Available in various thicknesses and customizable sizes, 5454 aluminum sheet is the top choice for industries requiring a robust, lightweight material with long-lasting performance.
| Specifications of 5454 Aluminum Plate: |
| Alloy | ASTM B209 1050, 1060, 1100, 1235, 3003, 3004, 3105, 5052, 5754, 6061, 8011 |
| Temper | H116/ H321/ H112 |
| Thickness | 3.0mm-200mm |
| Width | 500-2600mm |
| Length | to clients’ requirement |
| Certificate of Classification | Classification Society (CCS), American Classification Society (ABS), French Classification Society (BV), British Classification Society (LR) Classification society certification. |
| Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Coating finish | PVDF, POLYESTER(PE) |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Total coating thickness | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium 5083 Sheet. One 40GP container can load about 24 tons Aluminium 5083 Sheet |
| 5454 Aluminum Plate Chemical Composition: |
| Al | Mg | Mn | Cr | Fe | Si | Cu | Zn | Ti | Cr |
| Rem | 2.4-3.0 | 0.5-1.0 | 0.05-0.25 | 0.4 | 0.25 | 0.10 | 0.25 | 0.2 | 0.05-0.2 |
| High-strength 5454 aluminum plate Mechanical Properties : |
| Tensile Strength | Yield Strength | Elongation |
| 215 MPa | 85 MPa | 10% |
| Applications of 5454 Aluminum Plate : |
1.Marine Industry: It is commonly used for boat hulls, shipbuilding, offshore structures, and marine equipment, where its resistance to seawater corrosion is critical.
2.Chemical Industry: Ideal for storage tanks, pressure vessels, and piping systems in chemical processing plants due to its ability to withstand harsh environments.
3.Transportation: Used in manufacturing truck bodies, trailers, and other transportation components that require a lightweight, corrosion-resistant material.
4.Architectural Applications: Used for exterior cladding, roofing, and structural panels in environments exposed to harsh weather conditions.
5.Defense and Aerospace: Employed in the production of military vehicles, armored ships, and other heavy-duty applications where strength and resistance to harsh conditions are essential.
| Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Ultrasonic test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Impact analysis
10. Metallography Experimental Test
| Why Choose Us ? |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
| Aluminum Sheet Manufacturers Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa aluminum’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
