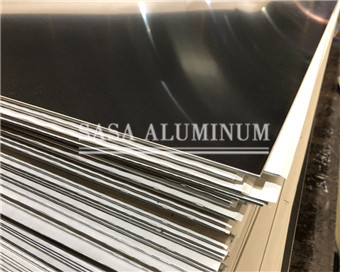

Aluminium Sheet Grade 52000
5052 is an aluminium alloy, primarily alloyed with magnesium and chromium. Aluminium alloy 5052 in H32 temper has very good corrosion resistance to seawater and marine and industrial atmosphere. It also has very good weldability and good cold formability. It is a medium to high strength alloy with a strength slightly higher than 5251 and a medium to high fatigue strength.
| Standard Dimensions of 52000 Aluminium Sheet: |
| Alloy | ASTM B209 1050, 1060, 1100, 1235, 3003, 3004, 3105, 5052, 5754, 6061, 8011 |
| Aluminium 52000 Sheet Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium 52000 Sheet Thickness | 0.5mm-150mm |
| Aluminium 52000 Sheet Width | 500-2000mm |
| Aluminium 52000 Sheet Length | to clients’ requirement |
| Aluminium 52000 Sheet Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| 52000 Aluminium Sheet Coating finish | PVDF, POLYESTER(PE) |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Gloss | Meet the customer requirement |
| Total coating thickness | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Coating hardness | (pencil hardness) more than 2H |
| Coating adhesive | No lower than1st grade |
| Impact resistance | No cracking or peeling (50kg/cm, ASTMD-2794: 1993) |
| Flexibility (T-bend) | 2T |
| MEK resistance | More than 10 |
| Available Aluminium 52000 Sheet Stock Sizes | 1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape. |
| Aluminium 52000 Sheet Delivery Time | 30-60 days after receiving the prepayment |
| Aluminium 52000 Sheet Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium 52000 Sheet. One 40GP container can load about 24 tons Aluminium 52000 Sheet |
| ASTM B209 Alloy 52000 Outer packing | Export standard, wooden pallet |
| Bottom side Aluminium 52000 Sheet is coated with protective polyester material, thickness more than 6 micron | |
| Export to | Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc. |
| Types of 52000 Aluminium Sheet: |
| 52000 Aluminium Sheets Product Range | ||||
|---|---|---|---|---|
| Alloy No. | Thickness (mm) |
Width (mm) |
Length (mm) |
Temper |
| A1050, A1060, A1070, A1100 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
| A3003, A3105, A3004 | 0.2-5.0 | 20-2200 | 20-8000 | O, H14, H18, H24 |
| A5052, A5005, A5083, A5086, A5754 | 0.2-5.0 | 20-2200 | 20-8000 | O, H18, H24, H32, H34, H111, H112 |
| A6061, A6082, A6063 | 0.2-5.0 | 20-2200 | 20-8000 | T4, T6, T651 |
| A8011 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
| Standard Specification of 52000 Aluminium Sheet: |
| Specification | Alloy | Temper | Company |
|---|---|---|---|
| Europe | |||
| EN 2089/2395 | 2014A | T6(T62)/T4(T42) | |
| EN 2087/2088 | 2014A clad | T6(T62)/T4(T42) | |
| EN 4101 | 2024 | T4 | |
| EN 2090/2091/2703/4001 | 2024 clad cmq | T3/T4/T4(T42)/T351 | |
| EN 3474/3997/3998/3999 | 2024 cmq | T81/T3/T4(T42)/T351 | |
| EN 2694/EN 3341 | 6061 | T6(T62)/T4(T42) | |
| EN 4449/4450 | 7050 | T76/F(T762) | |
| EN 2696 | 7075 | T6(T62) | |
| EN 2092 | 7075 clad | T6(T62) | |
| EN 2802/3333 | 7475 | T761/F(T762) | |
| EN 2803/3332 | 7475 clad | T761/F(T762) | |
| France | |||
| AIR 9048.010/.030/ | 2014 | F(T42)/F(T62)/T4/ | |
| .020/.040/.050 | 2014 | T6/T451 | |
| AIR 9048.060/.080/.070/.090 | 2014 clad | F(T42)/F(T62)/T4/T6 | |
| AIR 9048.100/.110/.120 | 2024 | ||
| AIR 9048.130/.140 | 2024 clad | F(T42)/T3 | |
| AIR 9048.150 | 2618A | H28(T62) | |
| AIR 9048.170 | 2618A clad | H28(T62) | |
| AIR 9048.190/.200 | 5086 | O, H111/H22, H32 | |
| AIR 9048.210/.220/.230/.240 | 6061 | O, H111(T42)/T4/ O, H111(T62)/T6 | |
| AIR 9048.260/.270 | 7075 | T6/T76 | |
| AIR 9048.280 | 7075 clad | T6 | |
| AIR 9048.290 | 7475 | T76 | Boeing |
| Germany | |||
| W.-Nr. 3.1254 | 2014A | T4, T6 | |
| W.-Nr. 3.1354 | 2024 | O(T42), T3 | |
| W.-Nr. 3.1364 | 2024 clad | O(T42), T3 | |
| W.-Nr. 3.3214 | 6061 | O(T62), T6 | |
| W.-Nr. 3.4364 | 7075 | T6 | |
| W.-Nr. 3.4374 | 7075 clad | O(T62), T6 | |
| W.-Nr. 3.4377 | 7475 clad | T76 | |
| UK | |||
| BS L16/17 | 1200 | H4/O | |
| BS L156/157/158*/159* | 2014A | ||
| 158*/159* | 2014A clad | (T42)(T62) | BAE Systems |
| BS L163/164/165 | 2014A clad | T3/F(T42), T4/T6 | |
| BS L166*/167* | 2014A clad | F(T42), T4/T6 | |
| BS L109/110 | 2024 clad | T3/F(T42) | |
| DTD5070 | 2618A clad | T6 | |
| BS L59/60/61 | 3103 | H6/H2/O | |
| BS L80/81 | 5251 | O/H6 | |
| BS L113 | 6082 | T4, T6 | |
| BS L88 | 7075 clad | T6 | |
| USA | |||
| AMS QQ-A-250/3 | 2014 clad | O, T4, T6 | |
| AMS QQ-A-250/4 | 2024 | O, T3 | |
| AMS 4037 | 2024 | T3 | |
| AMS QQ-A-250/5 | 2024 clad | O, T3 | |
| AMS 4041 | 2024 clad | T3 | |
| AMS QQ-A-250/30 | 2219 | O(T62), T31(T81), T37(T87) | |
| AMS QQ-A-250/2 | 3003 | O, H14 | |
| AMS 4347 | 6013 | T4 | |
| AMS 4216 | 6013 | T6 | |
| AMS 4025/4026/4027 | 6061 | O, F, T4, T42, T45, T6, T62, T651 | |
| AMS QQ-A-250/12 | 7075 | O, T6, T73 | |
| AMS QQ-A-250/24 | 7075 | T76 | |
| AMS QQ-A-250/13 | 7075 clad | O, T6, T73 | |
| AMS QQ-A-250/26 | 7075 clad with 7011 | T76 | |
| AMS QQ-A-250/25 | 7075 clad with 7072 | T76 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| EN AW-1070 A | – | 1070 | Al-99.7 | Al-99.7 | 19700 | – |
| EN AW-1100 | IC | 1100 | Al-99.0 | Al-99.0 | 19000 | 2 S |
| EN AW-2011 | FC1 | 2011 | AlCuBiPb | AlCu6BiPb | – | 28S |
| EN AW-2014 | HE15 | 2014 | AlCuSiMn | AlCu4SiMg | 24345 | B26S |
| EN AW-2024 | – | 2024 | AlCuMg2 | AlCu4Mg1 | – | 24 S |
| EN AW-3003 | N3 | 3003 | AlMnCu | AlMn1Cu | 31000 | 3 S |
| EN AW-3103 | – | 3103 | – | AlMn1 | – | – |
| EN AW-6101A | E91E | 6101 | E AlMgSi 0.5 | E AlMgSi(A) | 63401 | D50S |
| EN AW-6005 | – | 6005 | AlMgSi0.7 | AlSiMg | 62400 | C51S |
| EN AW-6351 | HE30 | 6351 | AlMgSi1 | AlSiMg0.5Mn | 64430 | B51S |
| EN AW-6060 | – | 6060 | AlMgSi 0.5 | AlMgSi | – | – |
| EN AW-6061 | HE20 | 6061 | AlMgSiCu | AlMg1SiCu | 65032 | 65S |
| EN AW-6063 | HE9 | 6063 | AlMgSi0.5 | AlMg0.7Si | 63400 | 50S |
| EN AW-6082 | HE30 | 6351 | AlMgSi1 | AlSi1MgMn | 64430 | B51S |
| 52000 Aluminium Sheet Equivalent Grades: |
| China |
U.S.A. |
BRITAIN |
CANADA | GERMANY |
RUSSIA |
I.S.O. |
FRENCH | |
|---|---|---|---|---|---|---|---|---|
| New IS | Old IS | (A.A.) |
(B.S.) |
(DIN) | – | – | – | |
| 19501 | 1E | 1050(E.C.) | 1E | C 1S | E-Al 99.5 | – | Al-99.5 | 1050A |
| 19500 | 1B | 1050 | 1B | 1S | A-99.5 | – | – | – |
| 19600 | – | 1060 | – | – | – | – | Al-99.7 | – |
| 19700 | – | 1070 | – | – | Al-99.7 | – | Al-99.8 | – |
| 19800 | 1A | 1080 | 1A | – | – | – | Al-99.0 | 1200 |
| 19000 | 1C | 1100 | 1C | 2S | Al-99.0 | AD | Al-Cu-6 Bi Pb | 2011 |
| – | – | 2011 | FC1 | 28S | Al-Cu-Bi-Pb | – | – | – |
| 24345 | H15 | 2014 | H15 | B26S | Al-Cu-Si | AK | Al-Cu-4Mg Si | – |
| 24534 | H14 | 2017 | H14 | 17S/16S | – | D1 | Al-Cu-4Mg 1 | 2024 |
| – | – | 2024 | – | 24S | Al-Cu-Mg.2 | – | AlCu-4PbMg | 2030 |
| – | – | 2030 | – | – | Al-Cu-Mg-Pb | – | Al-Cu2-Mg1.5-Ni | 2618 |
| – | – | 2618 | 2618 | – | – | – | A-Mn 1 | 3003 |
| 31000 | N3 | 3003 | N3 | 3S | Al-Mn | A-Mn | Al Mn 1 Mg 1 | 3004 |
| – | – | 3004 | – | Al-Mn.1-Mg.1 | Al Mn 1 Mg 0.50 | 3005 | ||
| – | – | 3005 | – | Al-Mn.1-Mg.0.50 | Al-Si5 | 4043 | ||
| 43000 | N21 | 4043 | N21 | 33S | Al-Si-5 | AK | – | – |
| 46000 | N2 | 4047 | N2 | 35S | – | – | A-Mg-1 | – |
| 51000 | – | 5005 | – | B57S | – | – | Al-Mg-2 | 5251 |
| 5051 | 5251 | Al-Mg.2 Mn.0.30 | A-Mg-2.5 | 5051 | ||||
| 52000 | N4 | 5052 | N4 | M57S | Al-Mg.2 | A-Mg | A-Mg-4 | – |
| 53000 | N5 | 5086 | N5 | 54S | – | A-Mg-3 | Al-Mg-4.5 Mn | 5083 |
| 54300 | N8 | 5083 | N8 | D54S | Al-Mg-4.5 Mn | – | Al-Mg.5 | 5356 |
| 55000 | N6 | 5056 | N6 | A56S | Al-Mg.5 | – | Al-Mg.3-Mn | 5454 |
| 5454 | 5454 | Al-Mg.2.7-Mn | – | Al.Mg.3 | 5754 | |||
| 5754 | Al-Mg.3 | Al-Mg-1Si Cu | – | |||||
| 65032 | H20 | 6061 | H20 | 65S | Al-Mg-Si Cu | – | Al-Mg-Si | – |
| 63400 | H9 | 6063 | H9 | 50S | Al-Mg-Si 0.5 | – | Al-Si-1 Mg | 6081 |
| 64430 | H30 | 6351 | H30 | B51S | Al-Mg-Si 1 | AV | Al-Si-1 Mg Mn | 6082 |
| 6082 | 6082 | Al-Mg-Si 1 | – | – | – | |||
| 64423 | H11 | 6066 | H11 | C62S | – | – | – | |
| 62400 | – | 6005 | – | C51S | – | – | – | – |
| 63401 | 91E | 6101 | 91E | D50S | E.Al.Mg.Si 0.5 | – | – | – |
| 64401 | – | 6201 | – | – | – | – | – | |
| – | – | 7020 | 7020 | – | – | – | 7020 | |
| 74530 | – | 7039 | – | D74S | – | – | 3004 | |
| – | – | 7075 | DTD-5124 | 75S | – | Al-Zn 6 Mg Cu | 7075 | |
| 40800 | 8011 | – | Al-Fe-Si | 8011 | ||||
| Sizes (mm) | Theoretical Mass KG/sheet |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 52000 Aluminium Sheet | 0,30 mm | 0,810 Kg/m2 |
| 52000 Aluminium Sheet | 0,40 mm | 1,080 Kg/m2 |
| 52000 Aluminium Sheet | 0,50 mm | 1,350 Kg/m2 |
| 52000 Aluminium Sheet | 0,60 mm | 1,620 Kg/m2 |
| 52000 Aluminium Sheet | 0,70 mm | 1,890 Kg/m2 |
| 52000 Aluminium Sheet | 0,80 mm | 2,160 Kg/m2 |
| 52000 Aluminium Sheet | 0,90 mm | 2,430 Kg/m2 |
| 52000 Aluminium Sheet | 1,00 mm | 2,700 Kg/m2 |
| 52000 Aluminium Sheet | 1,20 mm | 3,240 Kg/m2 |
| 52000 Aluminium Sheet | 1,40 mm | 3,780 Kg/m2 |
| 52000 Aluminium Sheet | 1,50 mm | 4,050 Kg/m2 |
| 52000 Aluminium Sheet | 1,60 mm | 4,320 Kg/m2 |
| 52000 Aluminium Sheet | 1,80 mm | 4,860 Kg/m2 |
| 52000 Aluminium Sheet | 2,00 mm | 5,400 Kg/m2 |
| 52000 Aluminium Sheet | 2,20 mm | 5,940 Kg/m2 |
| 52000 Aluminium Sheet | 2,50 mm | 6,750 Kg/m2 |
| 52000 Aluminium Sheet | 3,00 mm | 8,100 Kg/m2 |
| 52000 Aluminium Sheet | 4,00 mm | 10,800 Kg/m2 |
| 52000 Aluminium Sheet | 5,00 mm | 13,500 Kg/m2 |
| 52000 Aluminium Sheet | 6,00 mm | 16,200 Kg/m2 |
| 52000 Aluminium Sheet | 10,00 mm | 27,000 Kg/m2 |
| 52000 Aluminium Sheet | 12,00 mm | 32,400 Kg/m2 |
| 52000 Aluminium Sheet | 15,00 mm | 40,500 Kg/m2 |
| 52000 Aluminium Sheet | 20,00 mm | 54,000 Kg/m2 |
| 52000 Aluminium Sheet Chemical Composition: |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| N 4 | 52000 | 5052 | — | 0.1 | 1.7 | 2.6 | — | 0.6 | 0.5 | — | 0.5 | 0.4 | Cr+Mn=0.5 | ||
Sheets (according to the standard EN 485-2) :
Packing Information of Aluminum sheet :
Aluminum Products packing: Seaworthy fuming wooden box export packing, suitable for long distance ocean transportation
Application of 52000 Aluminium Sheet
Sasa Aluminium 52000 Aluminium Sheet is the most widely used form of Industrial Aluminium. 52000 Aluminium Sheets find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.
